STAINLESS STEEL BUTT-WELDING FITTINGS
PHỤ KIỆN NỐI HÀN ĐƯỜNG ỐNG INOX CÔNG NGHIỆP

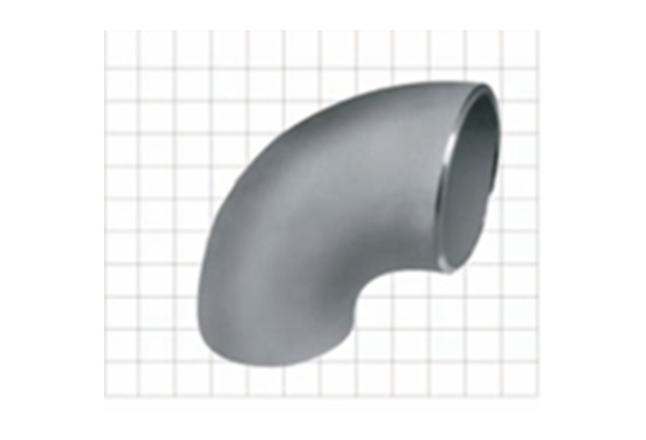

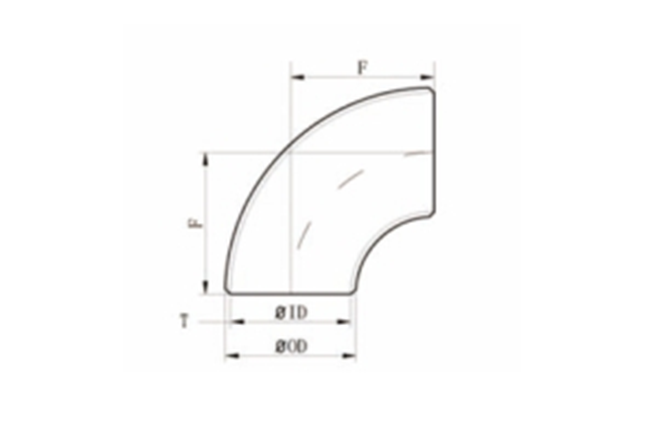

90° LONG RADIUS ELBOWS
CÚT HÀN 90° LOẠI DÀI
90E(L) OR 90LR
GB
Unit: mm
NPS
Outside diam
SCH 5S
SCH 10S
SCH40S
Center to end H
A
B
ODⅠ
ODⅡ
T
IDⅠ
IDⅡ
T
IDⅠ
IDⅡ
T
IDⅠ
IDⅡ
15A
1/2”
21.3
18.00
1.65
18.03
14.70
2.11
16.43
17.08
2.77
15.80
12.46
16
20A
3/4”
26.9
25.00
1.65
23.37
21.70
2.11
22.45
22.68
2.87
20.93
19.28
19
25A
1”
33.7
32.00
1.65
30.10
28.70
2.77
27.86
28.16
3.38
26.64
25.24
22
32A
1.1/4”
42.4
38.00
1.65
38.86
34.70
2.77
36.63
36.86
3.56
35.05
30.88
25
40A
1.1/2”
48.3
45.00
1.65
44.96
41.70
2.77
42.72
42.76
3.68
40.89
37.64
29
50A
2”
60.3
57.00
1.65
57.02
53.70
2.77
54.79
54.76
3.91
52.50
49.18
35
65A
2.1/2”
73.0
76.00
2.11
68.81
71.78
3.05
66.93
66.90
5.16
62.71
65.68
44
80A
3”
88.9
89.00
2.11
84.68
84.78
3.05
82.80
82.80
5.49
77.93
78.02
51
90A
3.1/2”
101.6
-----
2.11
97.38
-----
3.05
95.50
95.50
5.74
90.12
-----
57
100A
4”
114.3
108.00
2.11
112.19
103.78
3.05
108.20
108.20
6.02
102.26
95.96
64
125A
5”
141.3
133.00
2.77
135.76
127.46
3.40
134.49
134.50
6.55
128.19
119.90
79
150A
6”
168.3
159.00
2.77
162.74
153.46
3.40
161.47
161.50
7.11
154.05
144.78
95
200A
8”
219.1
219.00
2.77
213.54
213.46
3.76
211.56
211.58
8.18
202.72
202.64
127
250A
10”
273.0
273.00
3.40
266.24
266.20
4.19
264.67
264.62
9.27
254.51
254.46
159
300A
12”
323.9
325.00
3.96
315.93
317.08
4.57
314.71
314.76
9.53
304.80
305.94
190
350A
14”
355.6
377.00
3.96
347.68
369.09
4.78
346.05
346.04
-----
-----
-----
222
400A
16’
406.4
426.00
4.19
398.02
417.62
4.78
396.85
396.84
-----
-----
-----
254
450A
18”
457.0
480.00
4.19
448.82
471.62
4.78
447.65
447.44
-----
-----
-----
286
500A
20”
508.0
530.00
4.78
498.45
520.44
5.54
496.93
496.92
-----
-----
-----
318
550A
22”
559.0
-----
4.78
549.25
-----
5.54
547.73
547.92
-----
-----
-----
343
600A
24”
610.0
630.00
5.54
598.53
618.92
6.35
596.90
597.30
-----
-----
-----
381
ASME
Unit: mm
NPS
OD
SCH 5S
SCH 10S
SCH 40S
Center to end H
A
B
T
ID
T
ID
T
ID
15A
1/2”
21.3
1.65
18.03
2.11
16.43
2.77
15.80
38
20A
3/4”
26.7
1.65
23.37
2.11
22.45
2.87
20.93
38
25A
1”
33.4
1.65
30.10
2.77
27.86
3.38
26.64
38
32A
1.1/4”
42.2
1.65
38.86
2.77
36.63
3.56
35.05
48
40A
1.1/2”
48.3
1.65
44.96
2.77
42.72
3.68
40.89
57
50A
2”
60.3
1.65
57.02
2.77
54.79
3.91
52.50
76
65A
2.1/2”
73.0
2.11
68.81
3.05
66.93
5.16
62.71
95
80A
3”
88.9
2.11
84.68
3.05
82.80
5.49
77.93
114
90A
3.1/2”
101.6
2.11
97.38
3.05
95.50
5.74
90.12
133
100A
4”
114.3
2.11
112.19
3.05
108.20
6.02
102.26
152
125A
5”
141.3
2.77
135.76
3.40
134.49
6.55
128.19
190
150A
6”
168.3
2.77
162.74
3.40
161.47
7.11
154.05
209
200A
8”
219.1
2.77
213.54
3.76
211.56
8.18
202.72
305
250A
10”
273.0
3.40
266.24
4.19
264.67
9.27
254.51
381
300A
12”
323.8
3.96
315.93
4.57
314.71
9.52
304.80
457
350A
14”
355.6
3.96
347.68
4.78
346.05
-----
-----
533
400A
16’
406.4
4.19
398.02
4.78
396.85
-----
-----
610
450A
18”
457.0
4.19
448.82
4.78
447.65
-----
-----
686
500A
20”
508.0
4.78
498.45
5.54
496.93
-----
-----
762
550A
22”
559.0
4.78
549.25
5.54
547.73
-----
-----
838
600A
24”
610.0
5.54
598.53
6.35
596.90
-----
-----
914
JIS
Unit: mm
NPS
OD
SCH 5S
SCH 10S
SCH 40S
Center to end H
A
B
T
ID
T
ID
T
ID
15A
1/2”
21.7
1.65
18.4
2.1
17.5
2.8
16.1
38,1
20A
3/4”
27.2
1.65
23.9
2.1
23.0
2.9
21.4
38,1
25A
1”
34.0
1.65
30.7
2.8
28.4
3.4
27.2
38,1
32A
1.1/4”
42.7
1.65
39.4
2.8
37.1
3.6
35.5
47,6
40A
1.1/2”
48.6
1.65
45.3
2.8
43.0
3.7
41.2
57,2
50A
2”
60.5
1.65
57.2
2.8
54.9
3.9
52.7
76,2
65A
2.1/2”
76.3
2.1
72.1
3.0
70.3
5.2
65.9
95,3
80A
3”
89.1
2.1
84.9
3.0
83.1
5.5
78.1
114,3
90A
3.1/2”
101.6
2.1
97.4
3.0
95.6
5.7
90.2
133,4
100A
4”
114.3
2.1
110.1
3.0
108.3
6.0
102.3
152,4
125A
5”
139.8
2.8
134.2
3.4
133.0
6.6
126.6
190,5
150A
6”
165.2
2.8
159.6
3.4
158.4
7.1
151
228,6
200A
8”
216.3
2.8
210.7
4.0
208.3
8.2
199.9
304,8
250A
10”
267.4
3.4
260.6
4.0
259.4
9.3
248.8
381
300A
12”
318.5
4.0
310.5
4.5
309.5
10.3
297.9
457,2
350A
14”
355.6
4.0
347.6
5.0
345.6
11.1
333.4
533,4
400A
16’
406.4
4.5
397.4
5.0
396.4
12.7
381
609,6
450A
18”
457.2
4.5
448.2
5.0
447.2
14.3
428.6
685,8
500A
20”
508.0
5.0
498.0
5.5
497.0
15.1
477.8
762
550A
22”
558.8
5.0
548.8
5.5
547.8
15.9
527
838,2
600A
24”
609.6
5.5
598.6
6.5
596.6
17.5
574.6
914,4
LƯU Ý:
Sản phẩm Co hàn 90° công nghiệp, inox 304, SCH40, size DN25 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
