Product Description

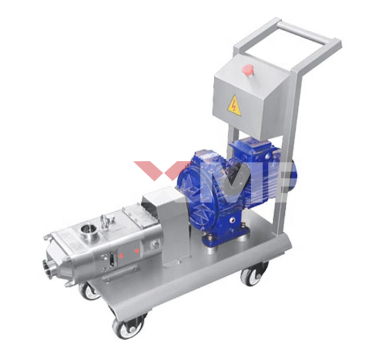

![bom-truc-vit-doi-1](https://inoxmen.vn/wp-content/uploads/2020/04/bom-truc-vit-doi-1.png.webp) | Bơm trục vít đôiInoxMen Screw pump for transport big solid large space twin screw pumpBơm trục vít đôi - Model NO.: INM.LG-20-70
- Min order: 2 sets
- Accept Min order: Yes
- Supply Ability: 100 sets / Month
|
Product Description |
- Place of Origin: CN
- Structure: Screw Pump
- Power: Electric
- Usage: Transport fluid
- Application: Food, fruit, cosmetic, beverage
- Fuel: Electric
- Pressure: Depend on request
- Brand Name: INOX MEN
- Model Number: INM.LG-20-70
INOX MEN Screw pump for transport big solid large space twin screw pump |
Product structure |
![add3-9](https://inoxmen.vn/uploads/2023/10/add3-9.png.webp) |
Technical Parameters |
Max flow | 110 m3/h | Max particles | 23mm | Max pressure | 20bar | Speed range | 10-3500 R.P.M | Working temperature | -40°C to 150 °C | Surface treatment | Ra≤0.6μm, Ra≤0.4μm | Material | 100% stainless steel, product contact part316L | Certification | 3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00 |
|
Dimensions |
Motor direct-connected screw pump selection table Model | Screw spacing (mm) | Pressure (bar) | Motor (kw) | Max solid (mm) | Flow per rotation (L/r) | Suggested speed range (r/min) | Suggested Flow range ( | Pump head inlet | Pump body outlet | Net weight (kg) | INM-LG-L/R-20-18 | 18 | 4 | 22 | 8.5 | 0.09 | 100-1450 | 0.54 | 7.8 | 1.5’-2’ | 1.5’-2’ | 80.9 | 7 | 3 | 84.9 | 10 | 4 | 90.9 | 14 | 5.5 | 123.9 | 18 | 7.5 | 134.9 | INM-LG-L/R-20-26 | 26 | 3 | 2.2 | 12.5 | 0.13 | 100-1450 | 0.78 | 11.3 | 1.5’-2’ | 1.5’-2’ | 80.9 | 5 | 3 | 84.9 | 8 | 4 | 90.9 | 11 | 5.5 | 123.9 | 15 | 7.5 | 134.9 | INM-LG-L/R-30-26 | 26 | 4 | 4 | 12.5 | 0.20 | 100-1450 | 1.2 | 17.4 | 2.5’-3’ | 2’-3’ | 152.7 | 8 | 5.5 | 163.7 | 12 | 7.5 | 218.7 | 18 | 11 | 233.7 | INM-LG-L/R-30-36 | 36 | 3 | 4 | 17.5 | 0.29 | 100-1450 | 1.74 | 25.2 | 2.5’-3’ | 2.5’-3’ | 152.7 | 7 | 5.5 | 163.7 | 10 | 7.5 | 218.7 | 15 | 11 | 233.7 | INM-LG-L/R-70-32 | 32 | 4 | 7.5 | 16.5 | 0.53 | 100-1000 | 3.18 | 31.8 | 3’-4’ | 3’-4’ | 314.7 | 8 | 11 | 329.7 | 12 | 15 | 374.7 | 18 | 18.5 | 387.7 | INM-LG-L/R-70-48 | 48 | 4 | 7.5 | 23.5 | 0.79 | 100-1000 | 4.74 | 47.4 | 3’-4’ | 3’-4’ | 314.7 | 7 | 11 | 329.7 | 10 | 15 | 374.7 | 15 | 18.5 | 387.7 |
Variable frequency motor helical gear screw pump selection table Model | Screw spacing (mm) | Pressure (bar) | Motor (kw) | Max solid (mm) | Flow per rotation (L/r) | Suggested speed range (r/min) | Suggested Flow range ( | Pump head inlet | Pump body outlet | Net weight (kg) | INM-LG-L/R-20-18 | 18 | 5 | 1.1 | 8.5 | 0.09 | 100-1000 | 0.54 | 7.8 | 1.5’-2’ | 1.5’-2’ | 76.9 | 10 | 1.5 | 85.9 | 14 | 2.2 | 93.9 | 18 | 3 | 101.9 | 20 | 4 | 114.9 | INM-LG-L/R-20-26 | 26 | 4 | 1.1 | 12.5 | 0.13 | 100-1000 | 0.78 | 11.3 | 1.5’-2’ | 1.5’-2’ | 76.9 | 8 | 1.5 | 85.9 | 12 | 2.2 | 93.9 | 16 | 3 | 101.9 | 18 | 4 | 114.9 | INM-LG-L/R-30-26 | 26 | 5 | 3 | 12.5 | 0.20 | 100-1000 | 1.2 | 17.4 | 2.5’-3’ | 2’-3’ | 130.7 | 10 | 4 | 143.7 | 15 | 5.5 | 201.7 | 20 | 7.5 | 214.7 | INM-LG-L/R-30-36 | 36 | 4 | 3 | 17.5 | 0.29 | 100-1000 | 1.74 | 25.2 | 2.5’-3’ | 2.5’-3’ | 130.7 | 8 | 4 | 143.7 | 12 | 5.5 | 201.7 | 16 | 7.5 | 214.7 | INM-LG-L/R-70-32 | 32 | 5 | 5.5 | 15.5 | 0.53 | 100-1000 | 3.18 | 31.8 | 3’-4’ | 3’-4’ | 297.7 | 10 | 7.5 | 310.7 | 15 | 11 | 441.7 | 20 | 15 | 460.7 | INM-LG-L/R-70-48 | 48 | 4 | 5.5 | 23.5 | 0.79 | 100-1000 | 4.74 | 47.4 | 3’-4’ | 3’-4’ | 297.7 | 8 | 7.5 | 310.7 | 12 | 11 | 441.7 | 16 | 15 | 460.7 |
|
LƯU Ý:
Sản phẩm Bơm trục vít đôi Inox Men được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
