Product Description

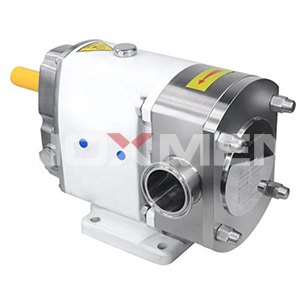

 | Bơm bánh răng mật rỉ đườngINOXMEN high quality sanitary double mechanical seal high viscosity honey rotary lobe pump with heat jacketBơm bánh răng mật rỉ đường Model NO.: INM.TUL - Min order: 1 set
- Accept Min order: Yes
- Supply Ability: 100 set / Month
|
| Product Description |
- Place of Origin: CN
- Structure: Gear Pump
- Power: Electric
- Pressure: Low Pressure
- Application: Cryogenic
- Usage: food & dairy processing
- Fuel: electric
- Brand Name: INOX MEN
- Model Number: INM.TUL
INOX MEN high quality sanitary double mechanical seal high viscosity honey rotary lobe pump with heat jacket |
| Product structure |
|
| Technical Parameters |
| Max flow | 90m3/h | | Max pressure | 15bar | | Max temperature | 150 °C | | Max speed | 750 R.P.M | | Surface treatment | Ra≤0.8μm, Ra≤0.6μm, Ra≤0.4μm | | Material | 316L, ASME BPE 316L | | Certification | 3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00 |
|
| Dimensions |
INM.TU & STU series lobe pump, parameter selection table Model | Inlet/Outlet | Max pressure (bar) | Max speed per minute | Suggested speed range per minute | Flow per revolution (L/R) | Max flow (m3/h) | Suggested flow (m3/h) | Flow per revolution (L/R) | Max flow (m3/h) | Suggested flow (m3/h) | INM-TUL/TUR-20 | 1′-DN25 | 15 | 700 | 50-450 | 0.12 | 5.0 | 0.36 | 3.2 | 0.11 | 4.6 | 0.33 | 2.9 | INM-TUL/TUR-23 | 1.5′-DN40 | 15 | 700 | 50-450 | 0.17 | 7.1 | 0.50 | 4.5 | 0.15 | 6.5 | 0.46 | 4.2 | INM-TUL/TUR-25 | 2′-DN50 | 15 | 700 | 50-450 | 0.24 | 10.1 | 0.72 | 6.5 | 0.22 | 9.1 | 0.65 | 5.8 | INM-TUL/TUR-30 | 2′-DN50 | 15 | 700 | 50-400 | 0.39 | 16.4 | 1.17 | 9.4 | 0.34 | 14.1 | 1.01 | 8.1 | INM-TUL/TUR-35 | 2.5′ | 12 | 700 | 50-400 | 0.49 | 20.5 | 1.47 | 11.7 | 0.42 | 17.1 | 1.26 | 10.1 | INM-TUL/TUR-55 | DN65 | 12 | 500 | 50-350 | 0.56 | 16.5 | 1.65 | 11.5 | 0.48 | 14.3 | 1.43 | 10.0 | INM-TUL/TUR-60 | 3′ | 10 | 500 | 50-350 | 0.31 | 18.2 | 1.82 | 12.7 | 0.53 | 15.8 | 1.58 | 11.1 | INM-TUL/TUR-70 | 3′ | 15 | 500 | 50-350 | 1.41 | 42.4 | 4.24 | 29.7 | 1.21 | 36.3 | 3.63 | 25.4 | INM-TUL/TUR-80 | DN80 | 15 | 500 | 50-350 | 1.41 | 42.4 | 4.24 | 29.7 | 1.21 | 36.3 | 3.63 | 25.4 | INM-TUL/TUR-100 | 4′-DN100 | 10 | 500 | 50-350 | 1.51 | 54.4 | 5.44 | 38.1 | 1.55 | 46.5 | 4.65 | 32.6 | INM-TUL/TUR-125 | 5′-DN125 | 10 | 500 | 50-350 | 2.30 | 69.1 | 6.91 | 48.3 | 1.97 | 59.1 | 5.91 | 41.3 |
|
LƯU Ý:
Sản phẩm Bơm bánh răng mật rỉ đường Inox Men được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
